AMD Ryzen 7 5700G 8 Core 16 Threads 3.80GHz (4.60GHz Boost) 16GB Kingston DDR4 RAM, 1TB Kingston NVMe, with Wi-Fi 6 Card – Stylish Black Deep Cool Case – Pre-Built System

Get blazing fast processing performance, beautiful graphics, and incredible efficiency with the world’s most advanced processor core technology

Refined Minimalism
The MACUBE 110 is a sleek micro-ATX case built with simplicity in mind featuring a refined magnetic tempered glass panel to show off your system.
Keeping the best details of the MACUBE line and condensed for a smaller form factor makes for a nice and tidy build.

Product Description
AMD Ryzen 7 5700G 8 Core 16 Threads 3.80GHz (4.60GHz Boost) 16GB Kingston DDR4 RAM, 1TB Kingston NVMe, with Wi-Fi 6 Card – Stylish Black Deep Cool Case – Pre-Built System

Processor
AMD Ryzen 7 5700G 3.80GHz 8 Core AM4 Processor, 16 Threads, 4.60GHz Boost, Radeon Graphics

Processor Cores
8

Processor Threads
16

Core Clock Speed
3.80GHz

Core Boost Speed
4.60GHz

Memory
Kingston FURY Beast 16GB (2 x 8GB) 3200MHz DDR4 DIMM System Memory Black Heatsink

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 4000 MB/s

Format
NVMe M.2

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S

Hard Drive
N/A

Optical Drive
N/A

Graphics
Radeon Graphics On-Chip

Graphics Card I/O
N/A

Operating System
No O/S

Card Reader
N/A

Networking
TP-Link Archer TX20E AX1800 Dual Band Wi-Fi 6 Bluetooth 5.2 PCI Express Adapter
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2

Power Supply
DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug
1 x Main Power Connector 24-Pin (20+4)
1 x EPS 12V Connector 8-Pin (4+4)
2 x PCIE 6+2 Pin (x1)
6 x SATA
2 x 4-Pin Peripheral

Motherboard
Gigabyte A520M S2H AMD Socket AM4 Micro ATX HDMI/DVI/VGA USB 3.2 Gen1 M.2 Motherboard

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0

Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x Q-Flash Plus button
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper

Chassis

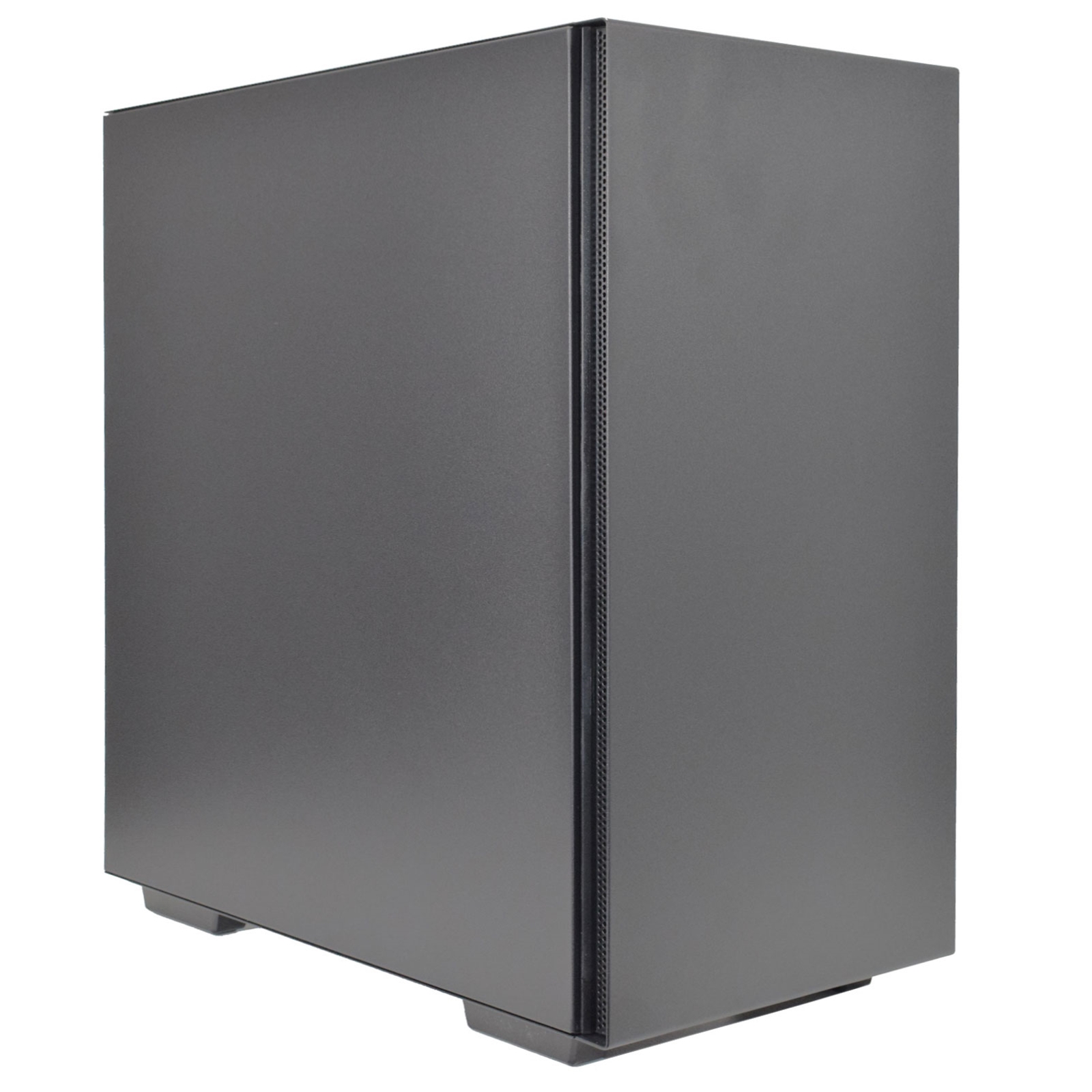

DeepCool MACUBE 110 Case, Home & Business, Black, Micro Tower, 2 x USB 3.0

Drive Bays
Internal 3.5″: 2
Internal 2.5″: 2

IO Ports
2 x USB 3.0
1 x Audio
Power
Reset

Cooling
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (Pre-installed)

Dimensions
400mm x 225mm x 431mm

Package Weight
6.90 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
