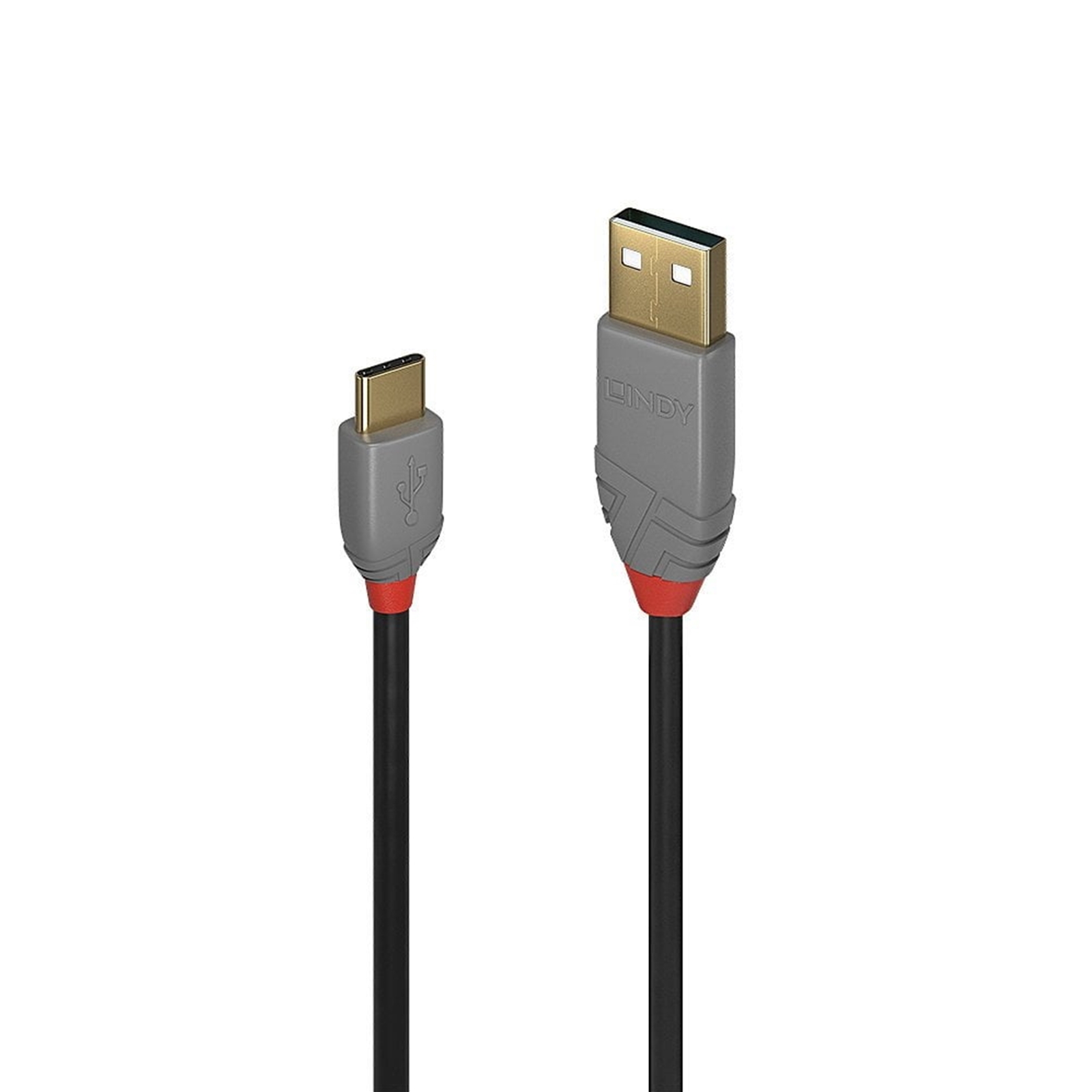

Lindy 36886 1m USB-A (M) 2.0 To USB-C (M) 2.0 Anthra Line 480Mbps Cable – Black

– Professional choice USB 2.0 Type A to C cable for commercial and high performance AV and IT installations
– Supports data transfer speeds up to 480Mbps
– Robust PVC housing, gold plated connectors and contacts
– Double shielded cable, corrosion resistant tinned copper conductors
– USB 2.0, 480Mbps; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to C cables are the professional choice for high performance connections in commercial AV and IT installations.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to C cables are available in lengths from 0.5m to 3m.

Connectors
Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type C Male
Housing Material: PVC
Connector Plating: 24K Gold Plated
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold Plated
Dimensions, USB Type A (approx.) WxDxH: 15.5×35.1×7.8mm (0.61×1.38×0.31in)
Dimensions, USB Type C (approx.) WxDxH: 11.0×25.5×7.3mm (0.43×1.00×0.29in)

Cable Construction
Length: 1m (3.28ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 3.5mm (0.14in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG
Shielding: Copper Braid 60%

Specifications
Supported Bandwidth: 480Mbps
Maximum Resolution: –
Nominal Attenuation: 0.5-3m: 0.5Mhz – 400Mhz < 5.8db
Minimum Bend Radius: 35mm (1.38in)
Operating Temperature: -20°C – 80°C (-4°F – 176°F)
Storage Temperature: -25°C – 85°C (-13°F – 185°F)

Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
