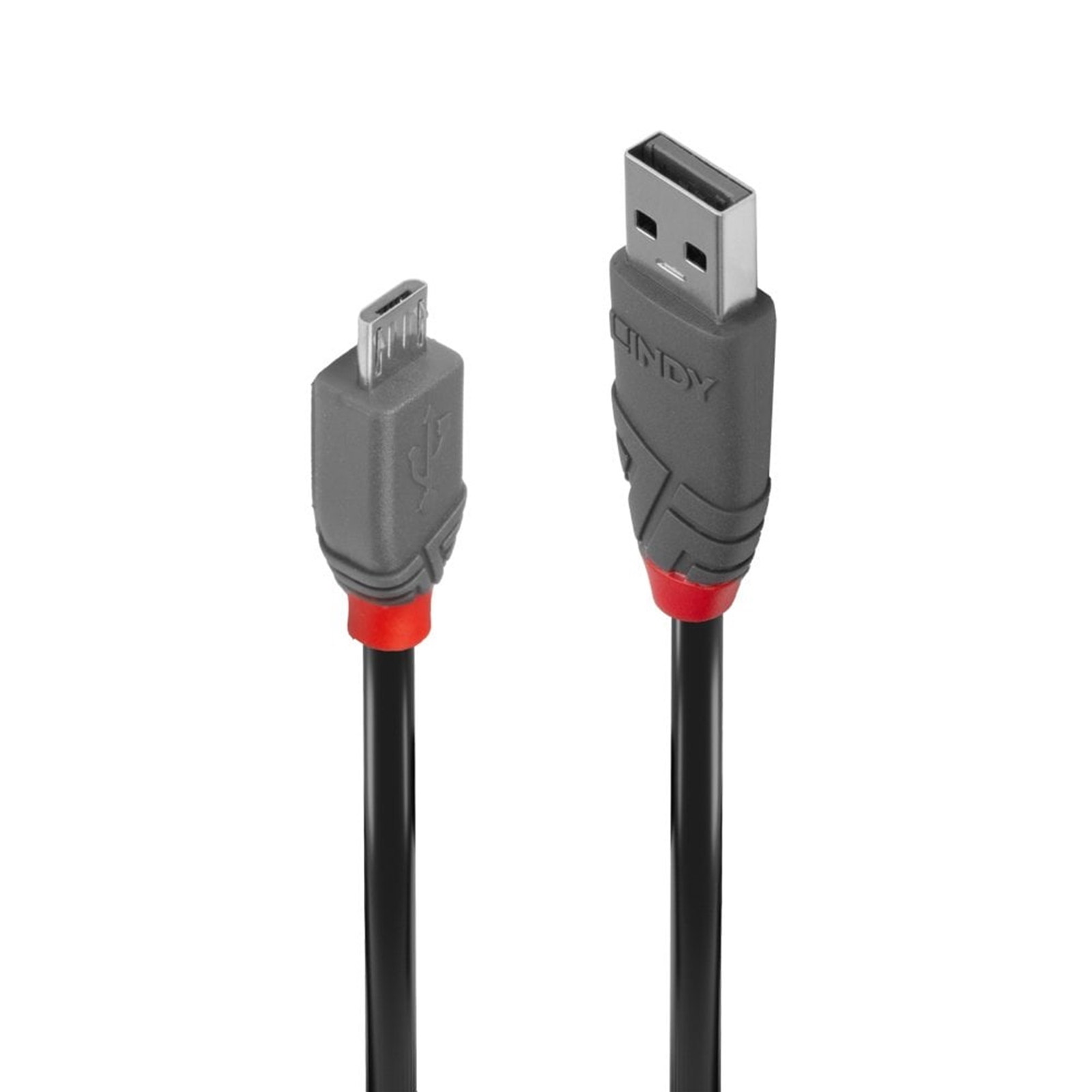

Lindy 36731 0.5m USB 2.0 Type A to Micro-B Cable, Anthra Line
8 in stock
- Connection A: USB-A (M)
- Connection B: USB-A (M)
- Length: 0.5m
- Colour: Black & Grey
£1.60 inc VAT
8 in stock
EAN: 4002888367318Lindy 0.5m USB 2.0 Type A to Micro-B Cable, Anthra Line
Key Features
Professional choice USB 2.0 Type A to Micro-B cable for commercial and high performance AV and IT installations
Supports data transfer speeds up to 480Mbps
Robust PVC housing, nickel connectors and gold plated contacts
Double shielded cable, corrosion resistant tinned copper conductors
USB 2.0, 480Mbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m.
Connectors
Connector A
USB 2.0 Type A Male
Connector B
USB 2.0 Type Micro-B Male
Housing Material
PVC
Connector Plating
Nickel
Pin Construction
Copper
Pin Plating
24K Gold
Dimensions
USB A (approx.) W x D x H
15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in)
USB Micro-B (approx.) W x D x H
10 x 24 x 7.6 mm (0.29 x 0.95 x 0.30 in)
Cable Construction
Length
0.5 m (1.64 ft)
Standard
USB 2.0
Colour
Black
Type
Round
Jacket Diameter
3.5 mm (0.14 in)
Jacket Material
PVC
Conductor Material
Tinned Copper
Conductor Gauge
28AWG
Shielding
Aluminium Magnesium Braid
Specifications
Supported Bandwidth
480Mbps
Maximum Resolution
N/A
Nominal Attenuation
5.8db/km
Minimum Bend Radius
16 mm (0.63 in)
Operating Temperature
0°C – 60°C (32°F – 140°F)
Storage Temperature
0°C – 60°C (32°F – 140°F)
Miscellaneous
Packaging Type
Polybag
Warranty (Years)
10
Certificated
RoHS, REACH, UL
